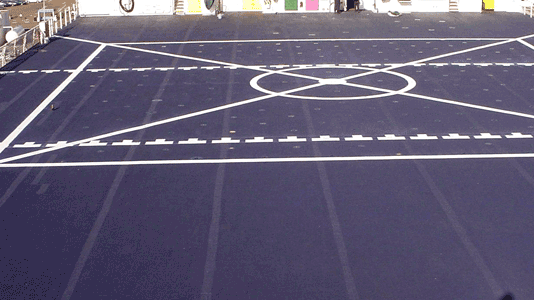

USNS Mercy Flight Deck
Surface prep: Remove and replace non-skid throughout flight deck Landing area by abrasive blasting to an SSPC SP-10 standard. Deck edge work and other inaccessible areas will be mechanically cleaned to an SSPC SP-11 standard.
Contamination prevention: Contained all around flight deck with 4 mil polyurethane plastic to prevent any debris or paint chips from escaping outside work area.
- Coating system:
- First Coat – MS-7cz Primer Gray.
- Stripe Coat – MS-7cz Primer Gray.
- Non-skid – MS-440-g / MS-400-L
All coatings were mixed and applied in accordance with manufacturer’s instructions.
All ambient readings, conductivity readings, surface temp, surface profile, wet film, dry film and material mixing times were taken by Surface Technologies’ QA representative. Conductivity tests were conducted using the BresleSampler patch and the Horiba unit recorded in microsiemens.
Pre-inspection shows mechanical damage worn from traffic |
This shows overall picture of stripe coat application |
